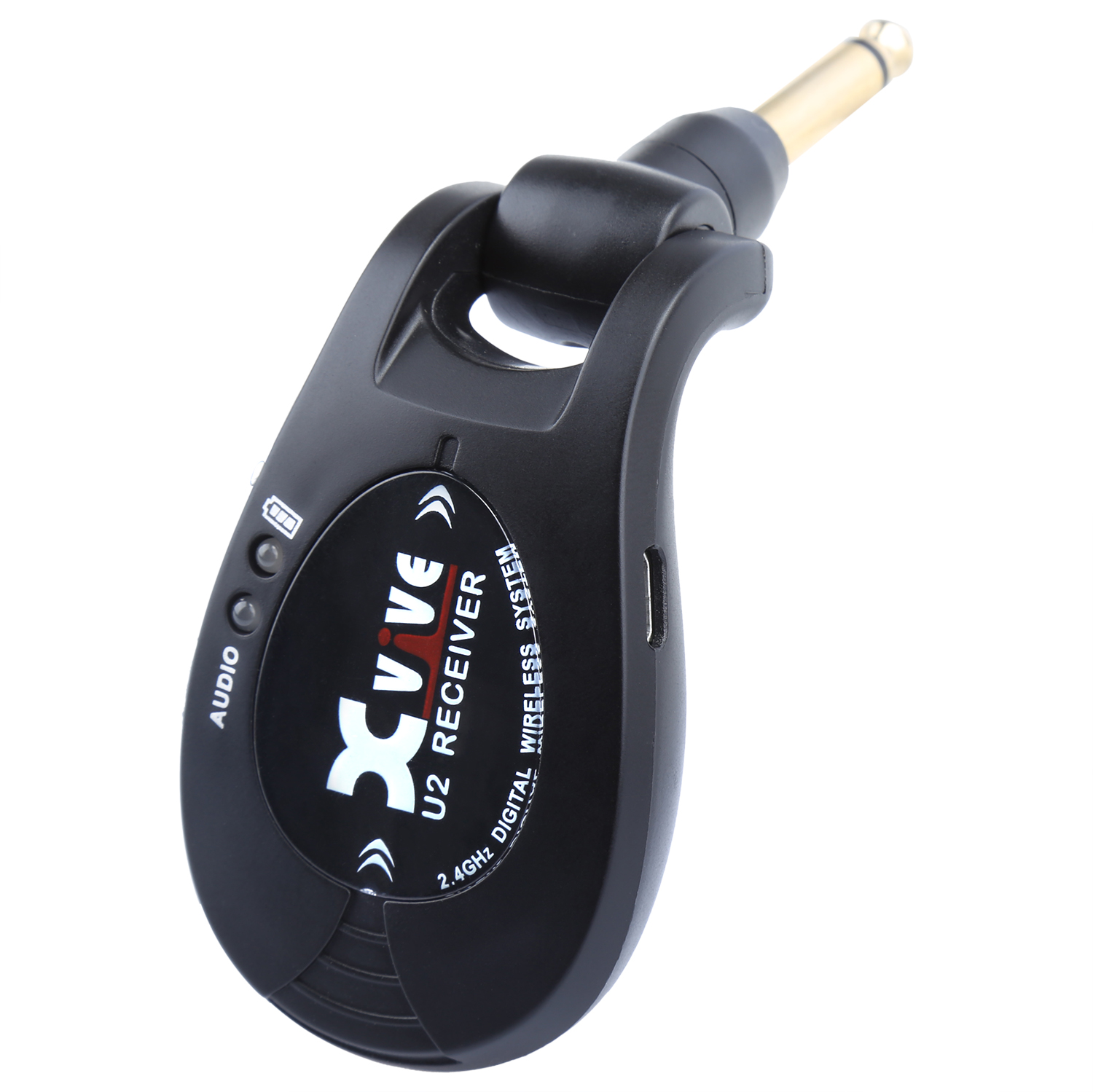

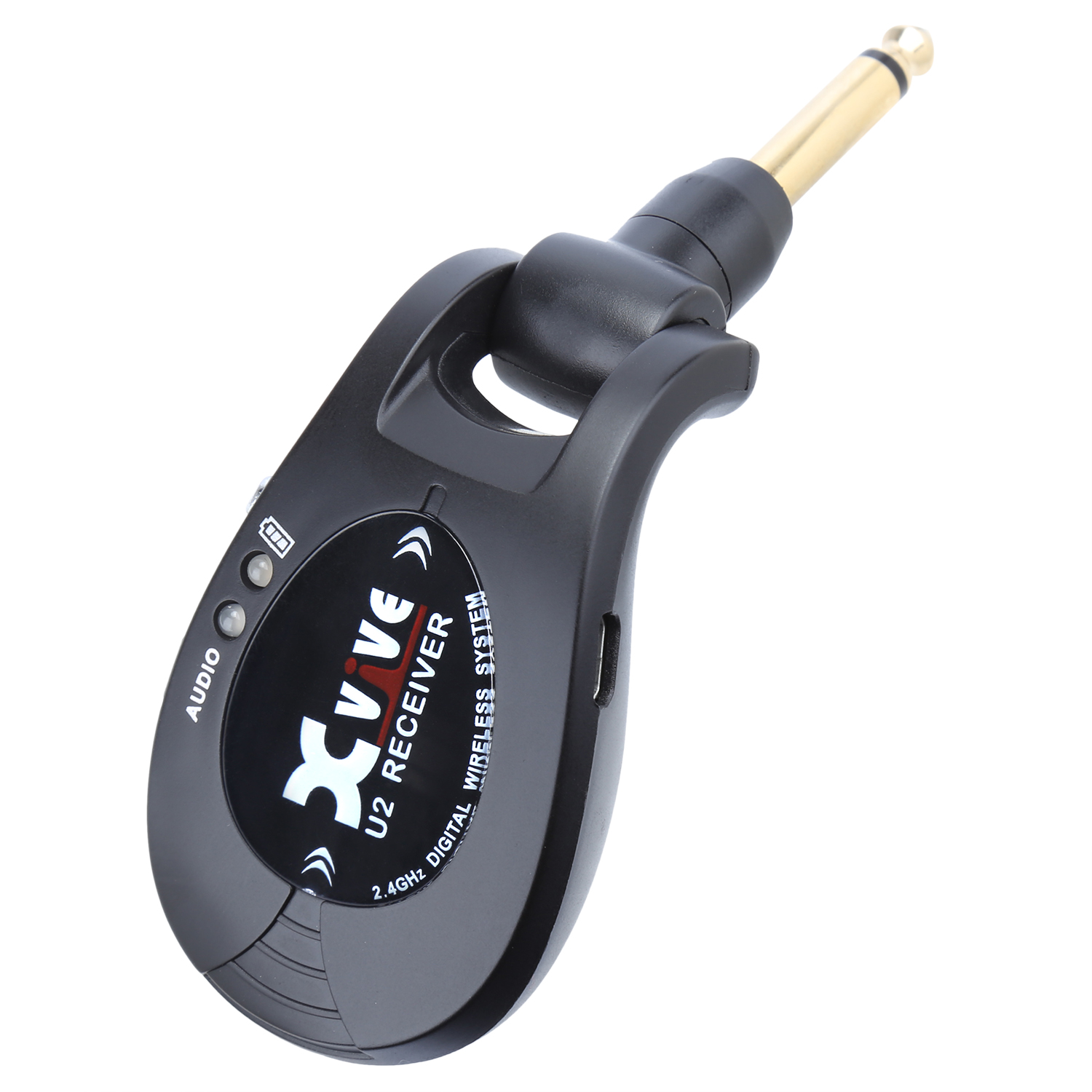

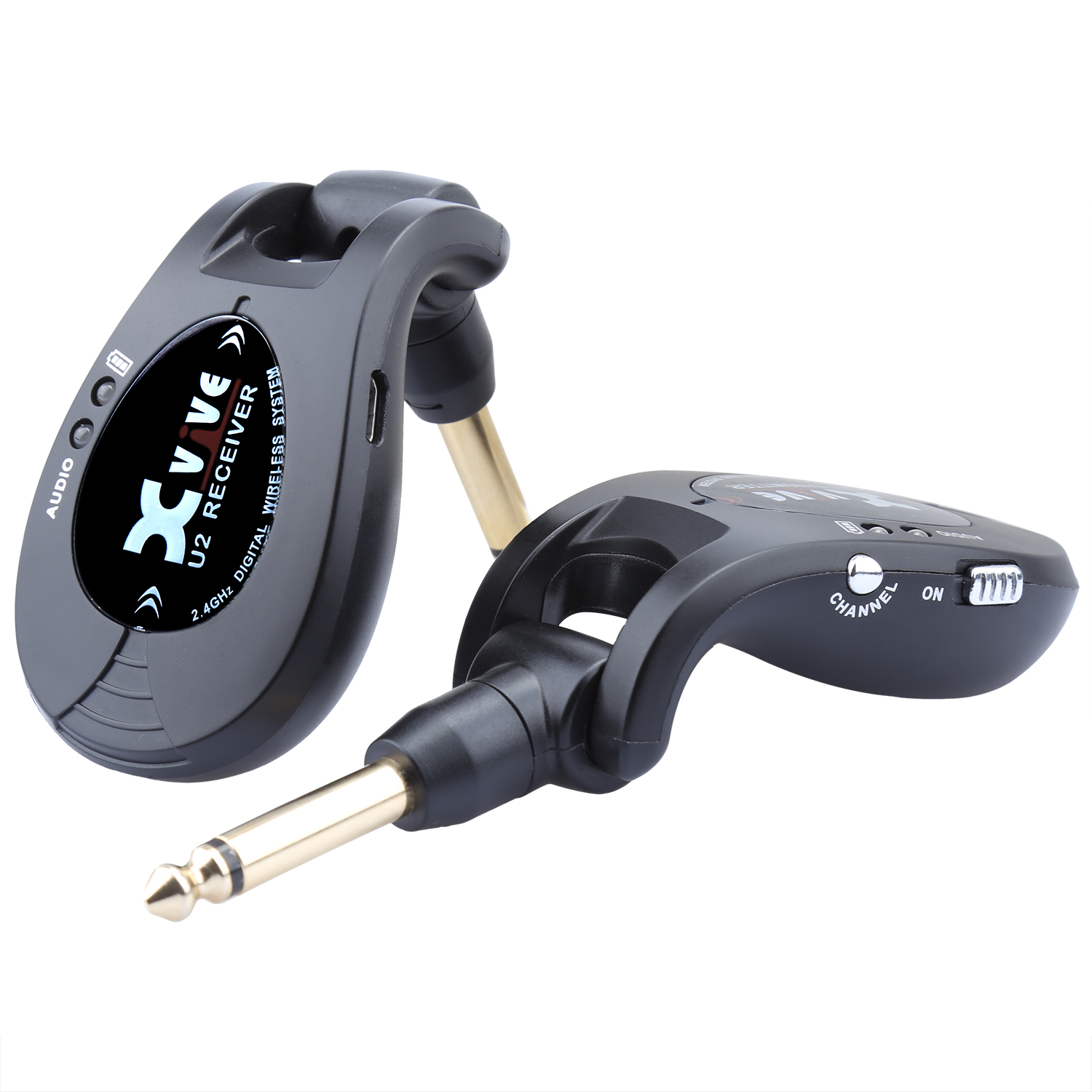

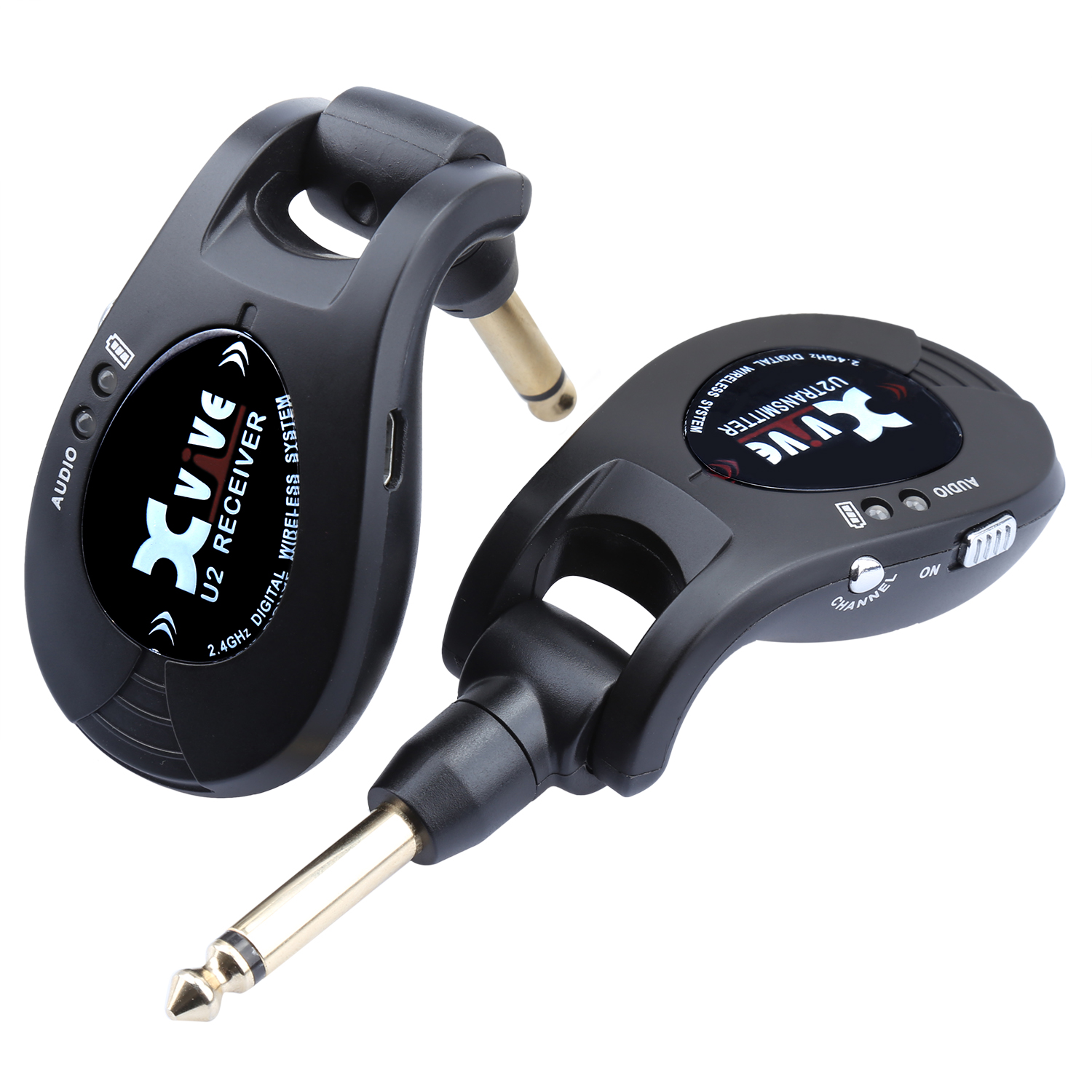

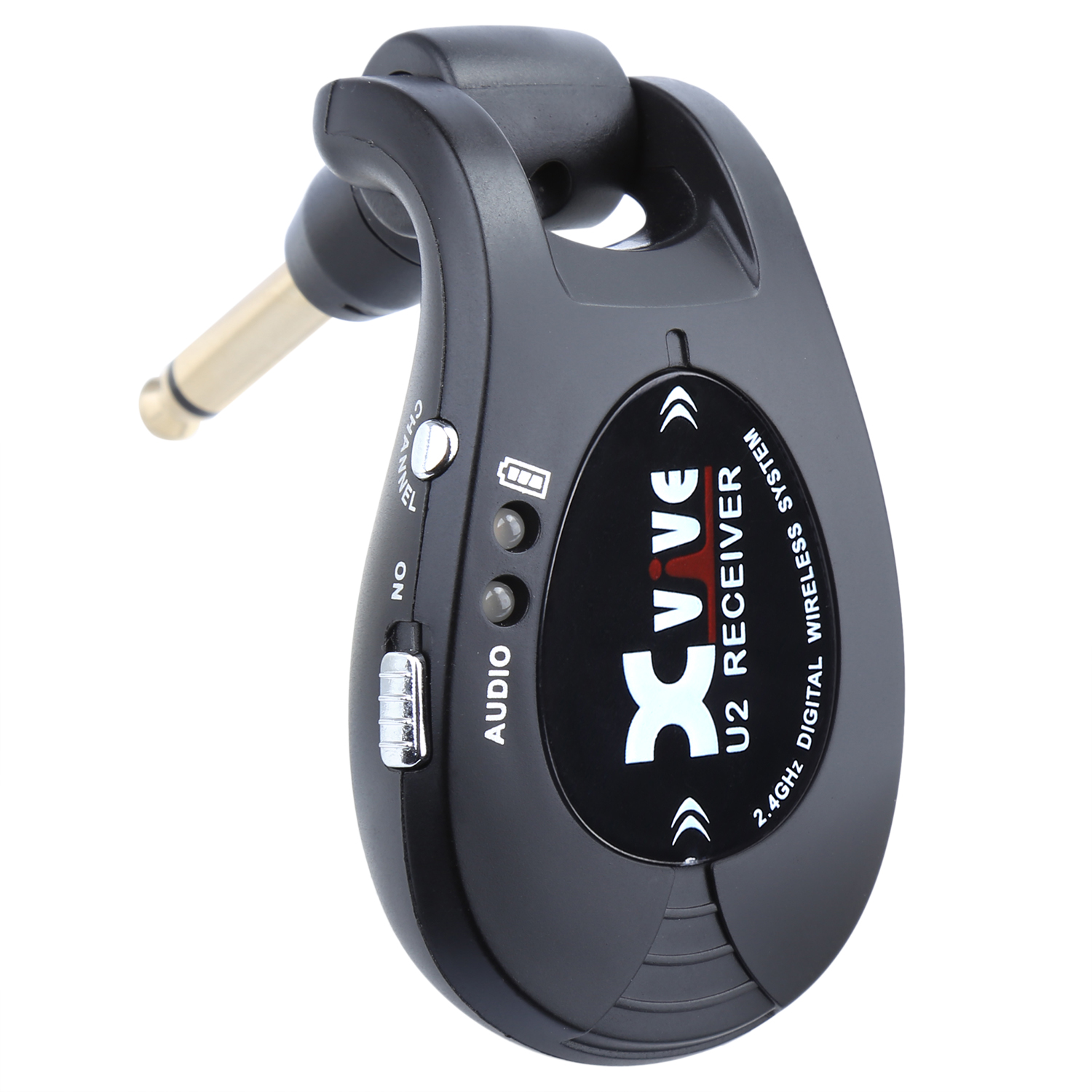

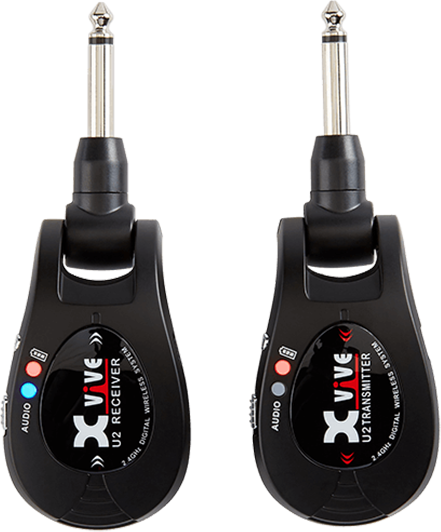

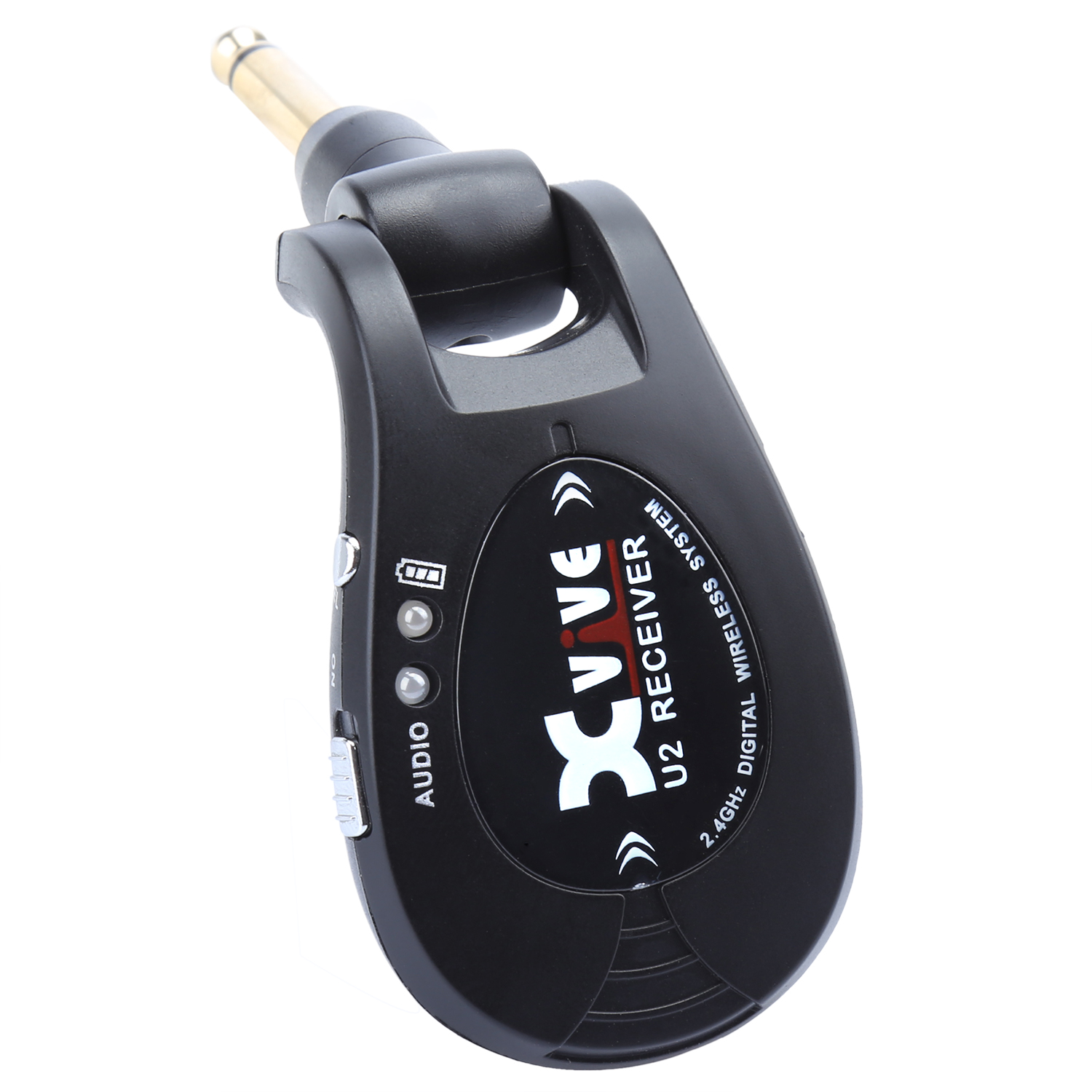

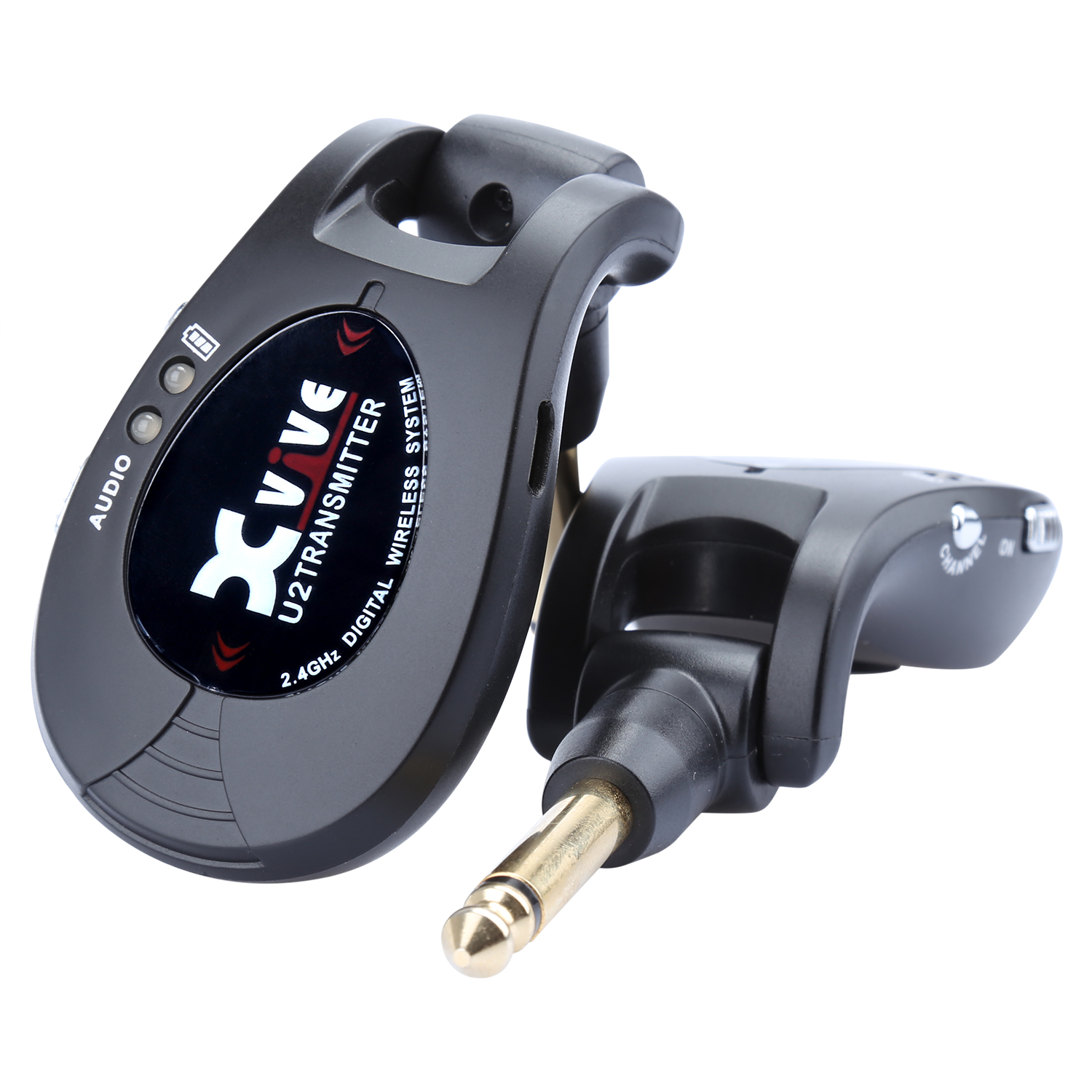

U2 COMPLETE SYSTEM - BLACK

  • Compact and lightweight plug-and-play wireless system for guitars, basses and other instruments
  • High-fidelity 24-bit / 48 kHz digital audio
  • Ultra-low latency of 5 ms
  • Wireless signal broadcasts on the 2.4 GHz band over a range of 70 ft
  • Onboard rechargeable lithium battery lasts for 5 hours
Download User Manual Download Firmware upgrade

Key online dealers

U2-1
U2-1

Application Scenarios

Studio
This is a placeholder text description.This is a placeholder text description.This is a placeholder text description.This is a placeholder text description.This is a placeholder text description.
Concert
This is a placeholder text description for Concert. Ideal for live performances with dynamic lighting and audience interaction.
Performance
This is a placeholder text description for Performance. Designed for theatrical or studio stage setups with professional audio equipment.
Studio Scene Studio Scene Studio Scene

Specifications

Overview

Wireless Type 2.4 GHz ISM worldwide open
Bit Depth/sample Rate band
Switchable Channels 24-bit/48 kHz
Simultaneous Channels 4
Frequency Response 4
Dynamic Range 20 Hz – 20 kHz (-3dB)
Signal-to-noise Ratio 103dB (-3dB)
Total Harmonic Distortion 103 dB
Latency 0.2%
Operating Range 5 ms

Battery

Type Rechargeable Lithium-ion (internal)
Battery Life 5 hours
Charging Time 2 hrs (full charge)
Charging Voltage 5V (USB)
Usable While Charging Yes

Transmitter

Connector 1/4″ TS
Dimensions 75x 44x 30 mm/2.95″x 1.73″x1.18″ (with plug extended, L:123 mm/4.84″)
Weight 40.7g/1.43oz
Mute Yes

Receiver

Connector 1/4″ TS
Dimensions 75x 44x 30 mm/2.95″x 1.73″x1.18″ (with plug extended, L:123 mm/4.84″)
Weight 40 g / 1.41 oz

Frequently Asked Questions

No Sound
  • Check Transmitter/Receiver power.
  • Check mute switch
  • Check the mute status on the microphone (Green = mic on; Yellow = muted).
  • Check that the units are set to the same channel
  • Check audio cables and mixer gain
Connection Drops
  • Check Transmitter/Receiver power.
  • Check mute switch
  • Check the mute status on the microphone (Green = mic on; Yellow = muted).
  • Check that the units are set to the same channel
  • Check audio cables and mixer gain
Distortion
  • Check Transmitter/Receiver power.
  • Check mute switch
  • Check the mute status on the microphone (Green = mic on; Yellow = muted).
  • Check that the units are set to the same channel
  • Check audio cables and mixer gain
